Cu7Zn3 brass, Zn K-edge
Cite as: Timoshenko et al, Chem. Sci., 11 (2020) 3727

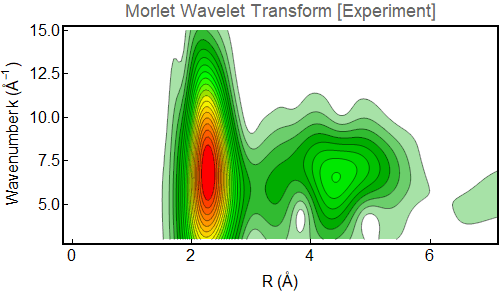

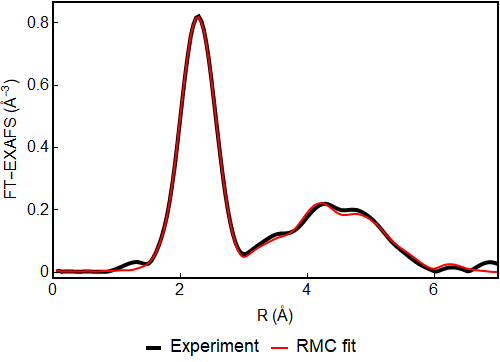

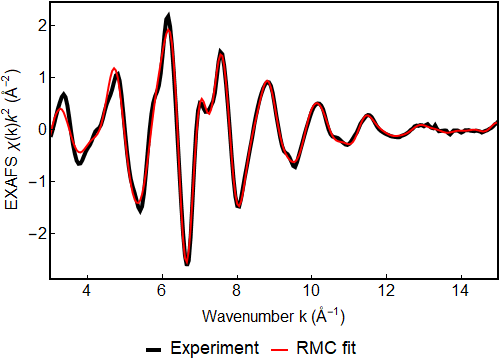

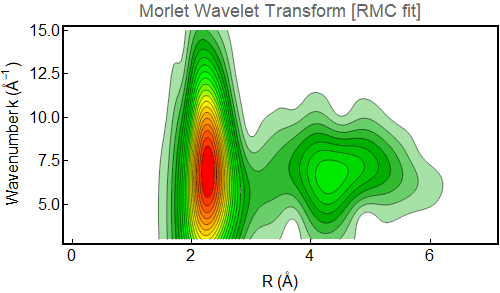

Comparison of experimental data with RMC fit results
Residual = 0.094 (R-factor = 0.009 )

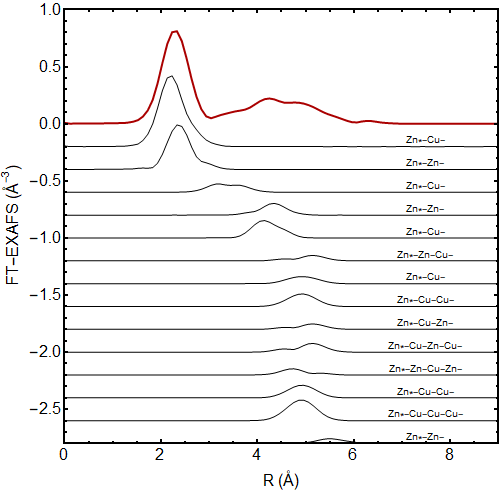

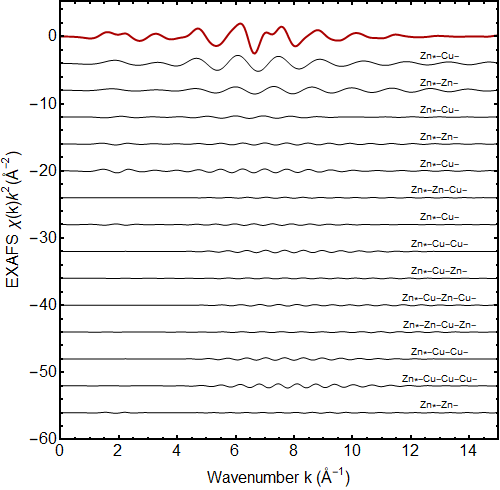

Contributions of the most important paths

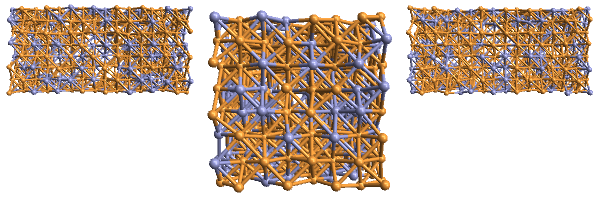

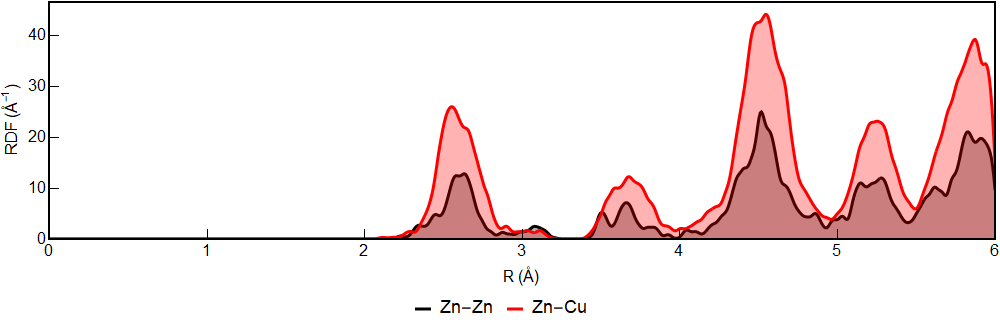

Structure
"| Coord.shell | Coord.number | Mean R (Å) | MSRD (Å-2) |
"
| Zn-Cu | 8.21 | 2.61 | 0.0233 |
| Zn-Zn | 3.79 | 2.638 | 0.0377 |
| Zn-Zn | 1.84 | 3.681 | 0.0256 |
| Zn-Cu | 4.16 | 3.712 | 0.0238 |
| Zn-Zn | 7.79 | 4.53 | 0.0275 |
| Zn-Cu | 16.21 | 4.531 | 0.0246 |
| Zn-Zn | 4.14 | 5.231 | 0.0273 |
| Zn-Cu | 7.86 | 5.239 | 0.0223 |
| Zn-Zn | 8.28 | 5.851 | 0.028 |
| Zn-Cu | 15.72 | 5.857 | 0.025 |
