ZnO, Zn K-edge, T = 200 K

Cite as: Timoshenko et al, Acta Mater. 79 (2014) 194
Download all input files
Download all output files

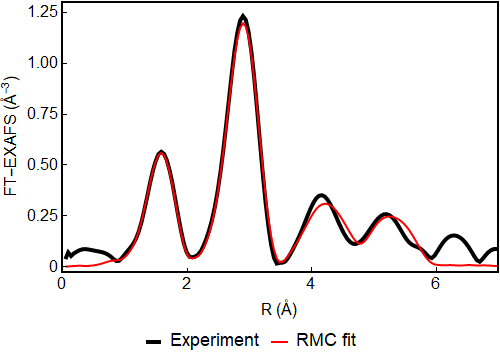

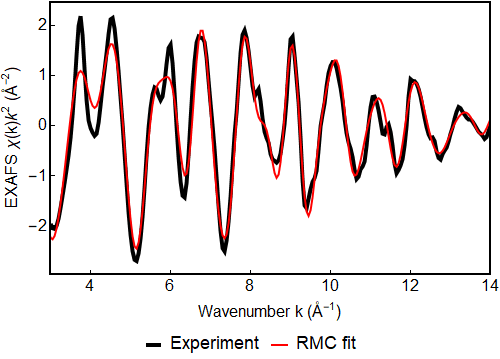

Comparison of experimental data with RMC fit results

Residual = 0.167 (R-factor = 0.028 )

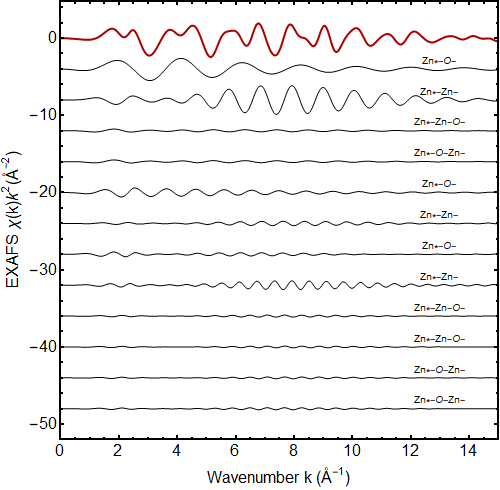

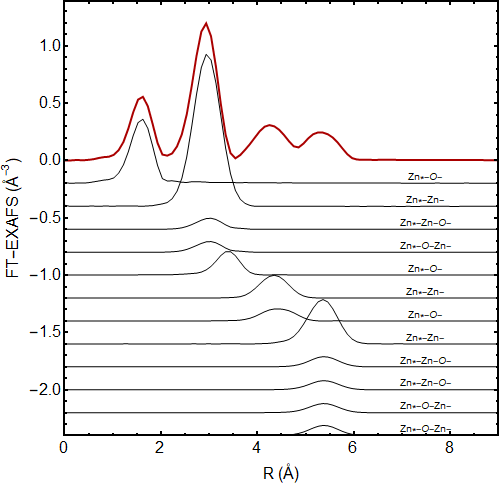

Contributions of the most important paths

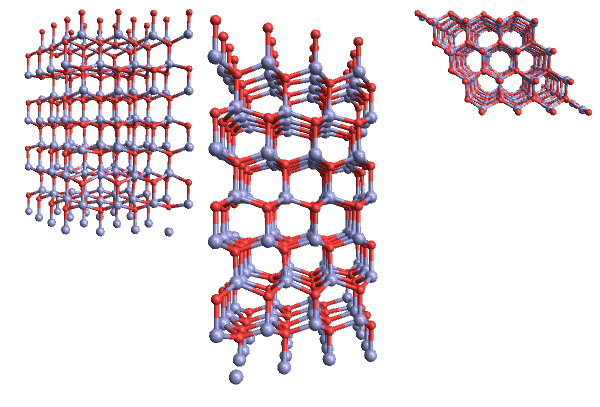

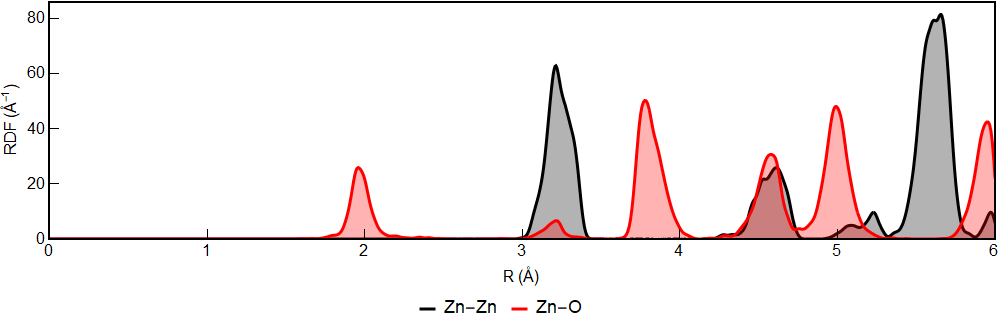

Structure

Coord.shellCoord. numberMean R (Å)MSRD (Å-2)
Zn-O 4. 1.981 0.0087
Zn-O 1. 3.193 0.0055
Zn-Zn 12. 3.231 0.0054
Zn-O 9. 3.816 0.0053
Zn-O 6. 4.556 0.0072
Zn-Zn 6. 4.568 0.0084
Zn-O 9. 4.994 0.0073
Zn-Zn 2. 5.205 0.0169
Zn-Zn 18. 5.614 0.0059
Zn-O 9. 5.969 0.007
