Zn foil, Zn K-edge

Cite as: Timoshenko et al, Chem. Sci., 11 (2020) 3727
Download all input files
Download all output files

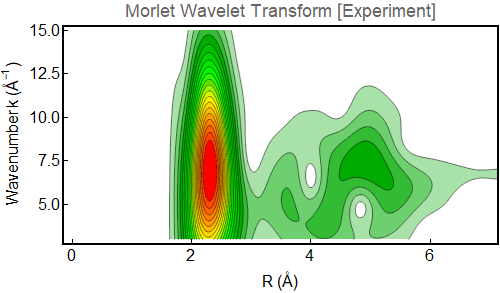

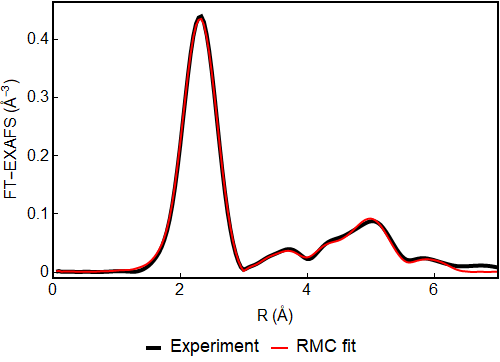

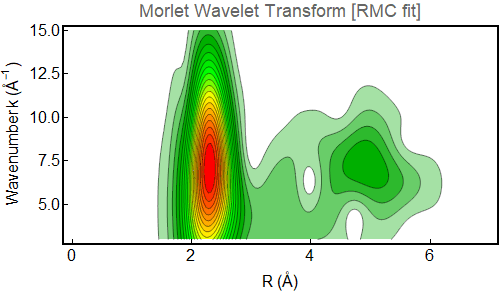

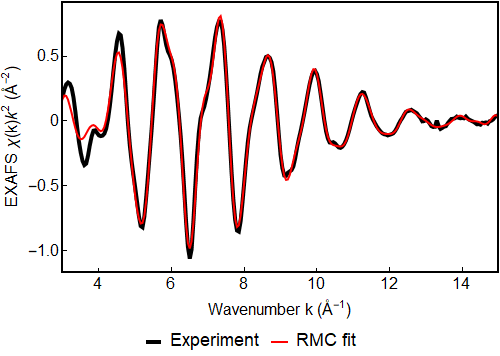

Comparison of experimental data with RMC fit results

Residual = 0.112 (R-factor = 0.012 )

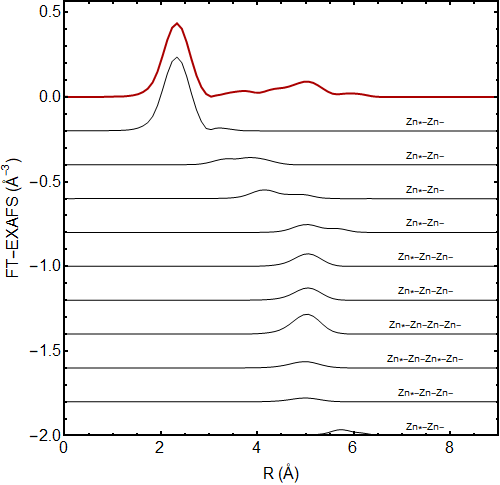

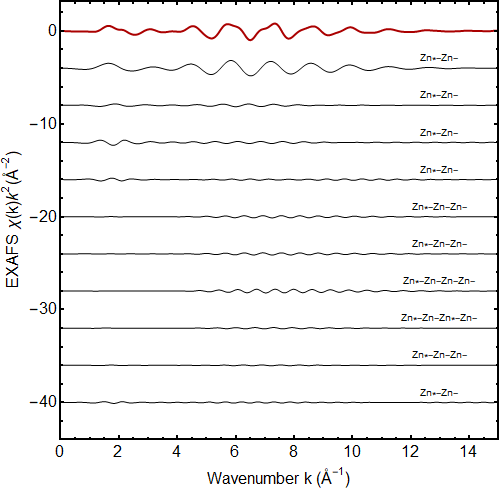

Contributions of the most important paths

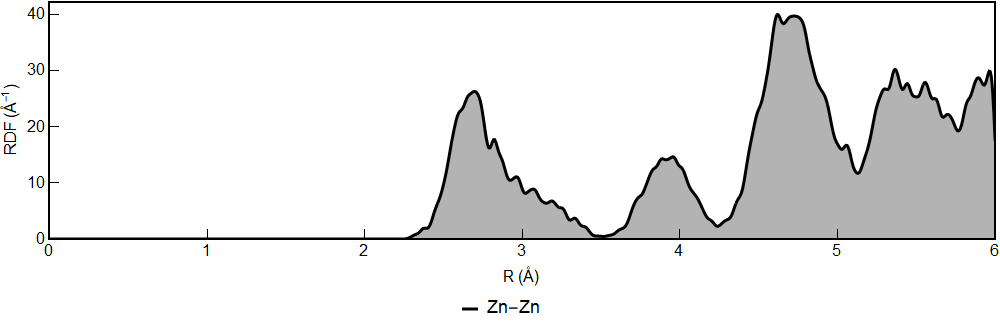

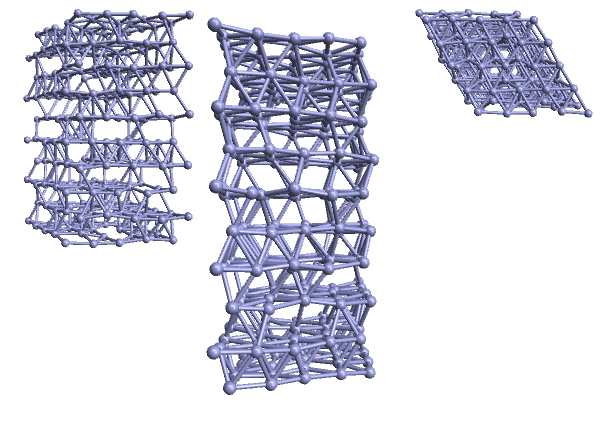

Structure

""
Coord.shell Coord.number Mean R (Å) MSRD (Å-2)
Zn-Zn 6. 2.676 0.0201
Zn-Zn 6. 2.921 0.0567
Zn-Zn 6. 3.955 0.0344
Zn-Zn 6. 4.623 0.0203
Zn-Zn 12. 4.77 0.0297
Zn-Zn 2. 4.951 0.0471
Zn-Zn 6. 5.336 0.0213
Zn-Zn 12. 5.623 0.0428
