CoWO4 nanoparticles, W L3-edge
Cite as: Timoshenko et al, Phys. Status Solidi A 212 (2015) 265

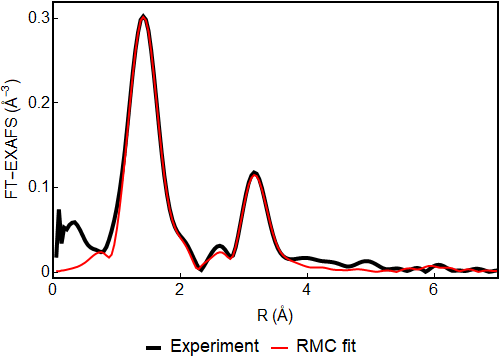

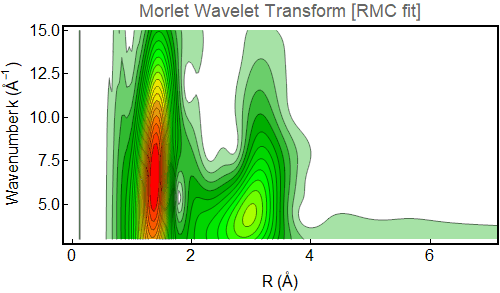

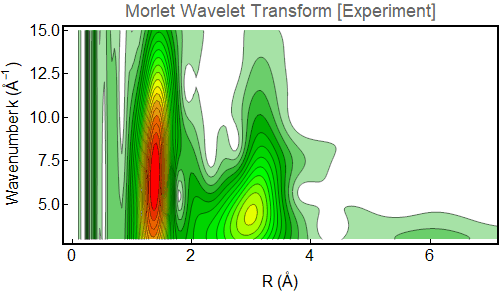

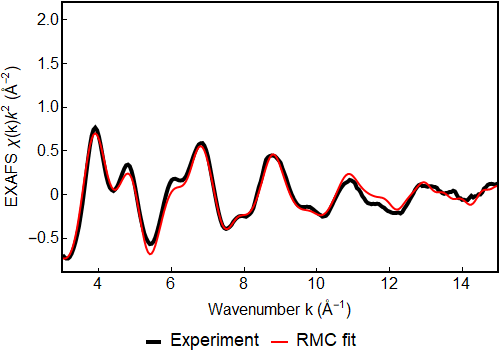

Comparison of experimental data with RMC fit results
Residual = 0.065 (R-factor = 0.004 )

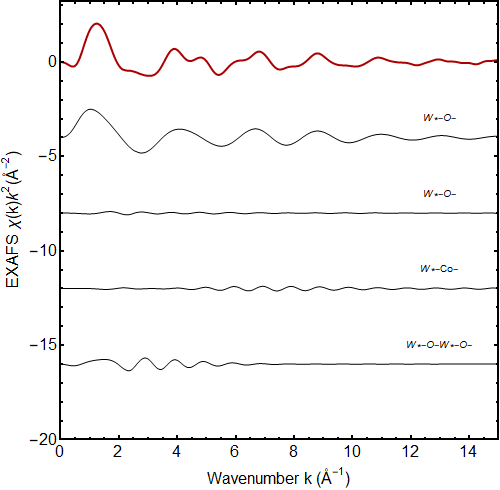

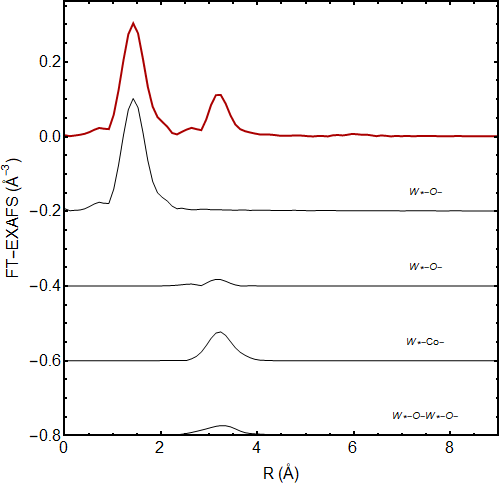

Contributions of the most important paths

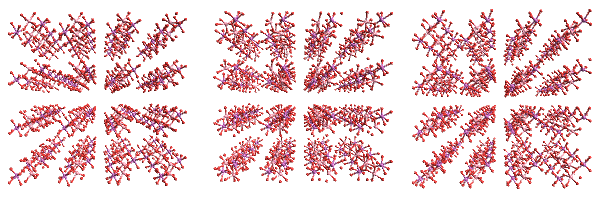

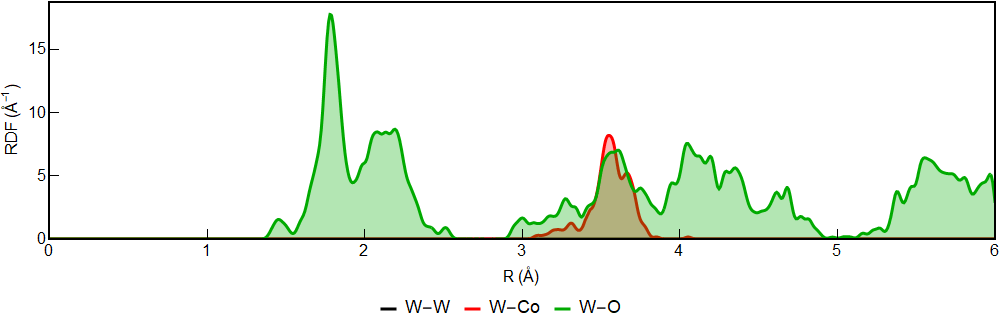

Structure
| Coord.shell | Coord. number | Mean R (Å) | MSRD (Å-2) |
| W-O | 2. | 1.737 | 0.0131 |
| W-O | 2. | 1.922 | 0.0183 |
| W-O | 2. | 2.188 | 0.0151 |
| W-O | 1. | 3.23 | 0.0236 |
| W-Co | 1. | 3.504 | 0.0186 |
| W-O | 1. | 3.578 | 0.0083 |
| W-Co | 1. | 3.597 | 0.0149 |
| W-O | 1. | 3.704 | 0.0153 |
| W-O | 1. | 4.022 | 0.0133 |
| W-O | 2. | 4.236 | 0.0171 |
| W-O | 1. | 4.653 | 0.0149 |
| W-O | 2. | 5.547 | 0.0221 |
| W-O | 0.75 | 5.812 | 0.0169 |
| W-O | 0.75 | 5.965 | 0.0147 |
