TiO2 (anatase), Ti K-edge
Cite as: Timoshenko et al, J.Phys.:Condens.Matter 26 (2014) 055401

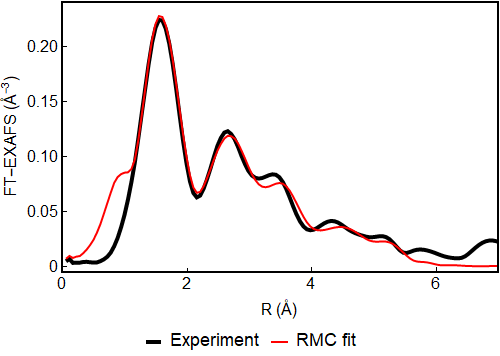

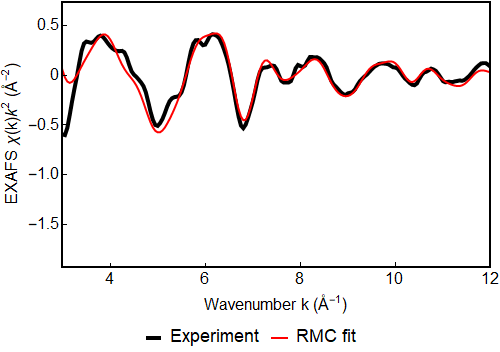

Comparison of experimental data with RMC fit results
Residual = 0.279 (R-factor = 0.078 )

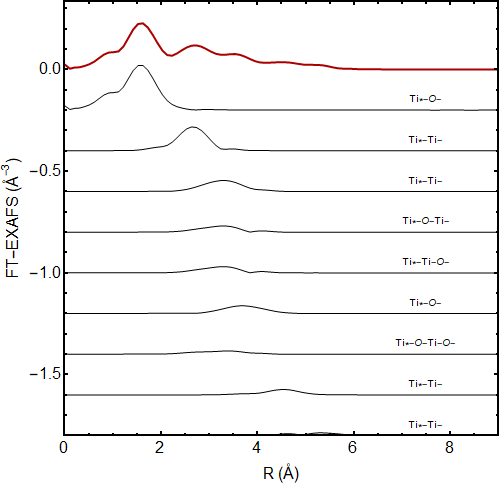

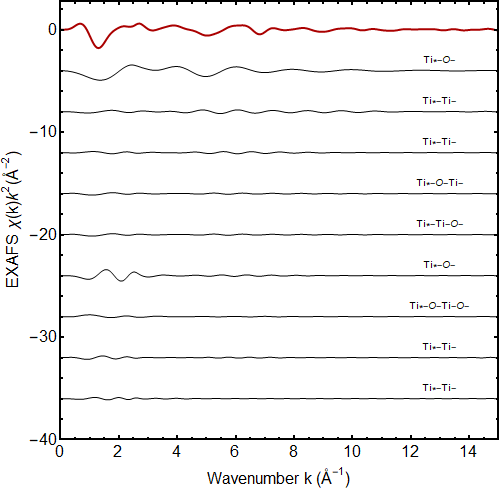

Contributions of the most important paths

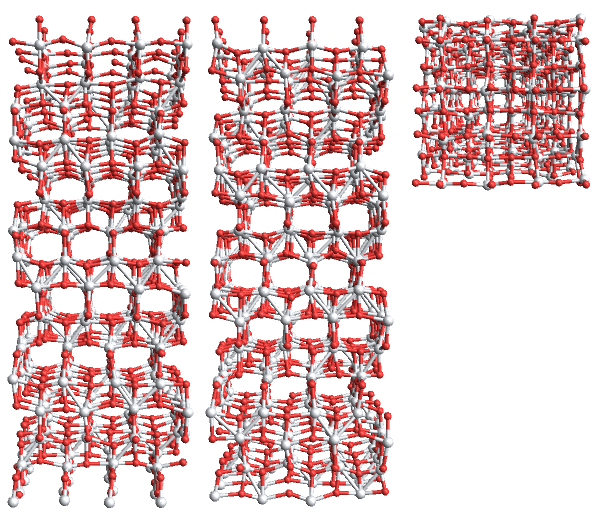

Structure
| Coord.shell | Coord. number | Mean R (Å) | MSRD (Å-2) |
| Ti-O | 6. | 1.971 | 0.068 |
| Ti-Ti | 4. | 3.061 | 0.0714 |
| Ti-Ti | 4. | 3.8 | 0.0664 |
| Ti-O | 8. | 3.865 | 0.0433 |
| Ti-O | 16. | 4.272 | 0.0435 |
| Ti-O | 4. | 4.766 | 0.0358 |
| Ti-Ti | 8. | 4.866 | 0.0651 |
| Ti-Ti | 4. | 5.363 | 0.0651 |
| Ti-Ti | 8. | 5.47 | 0.055 |
| Ti-O | 4. | 5.496 | 0.0384 |
| Ti-O | 12. | 5.71 | 0.047 |
