PdAu nanoparticle, Pd K-edge

Cite as: Timoshenko et al, Nano Lett. 19 (2019) 520
Download all input files
Download all output files

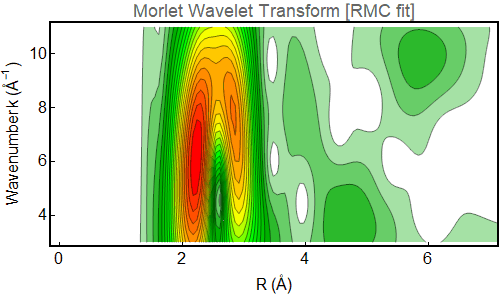

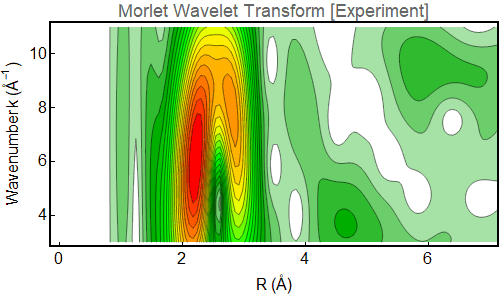

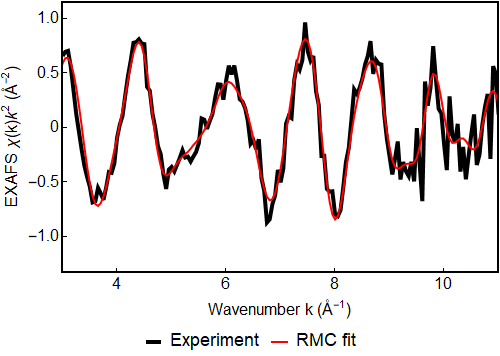

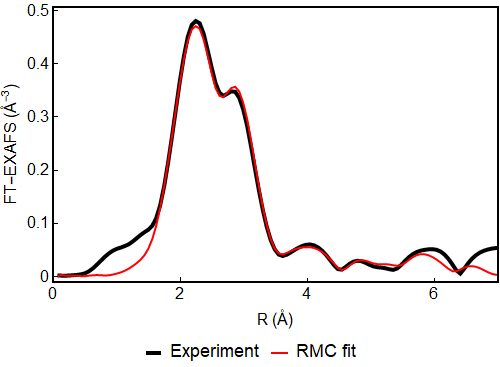

Comparison of experimental data with RMC fit results

Residual = 0.107 (R-factor = 0.011 )

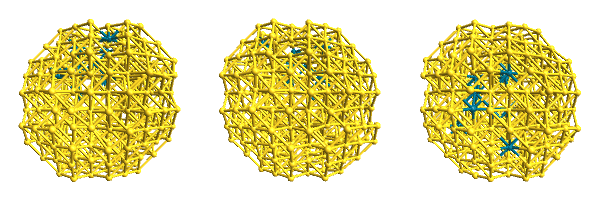

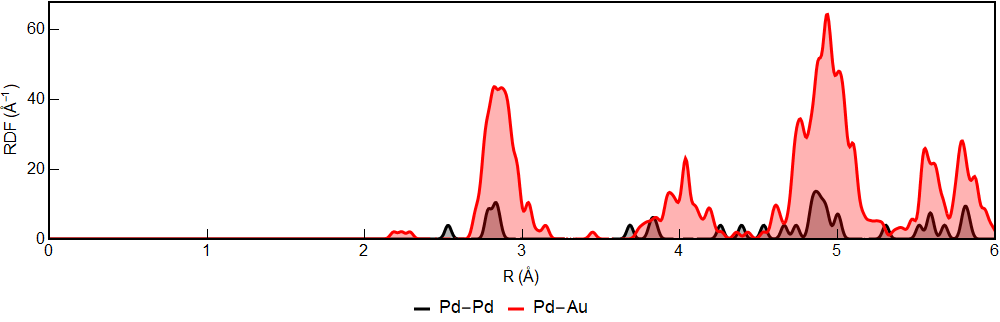

Structure

Coord.shellCoord. numberMean R (Å)MSRD (Å-2)
Pd-Pd 1.2 2.767 0.013
Pd-Au 10.7 2.857 0.0228
Pd-Pd 0.8 3.9 0.0528
Pd-Au 4.8 4.013 0.0179
Pd-Pd 2.8 4.812 0.0299
Pd-Au 18.7 4.909 0.0188
Pd-Pd 1.6 5.641 0.0299
Pd-Au 8.4 5.662 0.0309
