NiO, Ni K-edge

Cite as: Timoshenko et al, Chem. Sci., 11 (2020) 3727
Download all input files
Download all output files

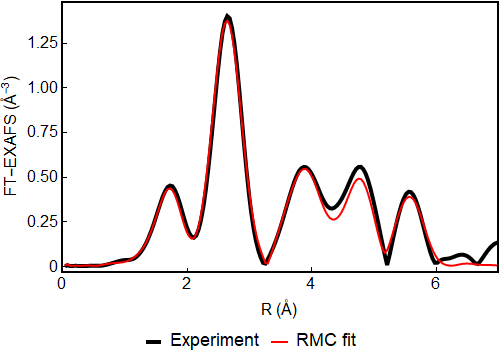

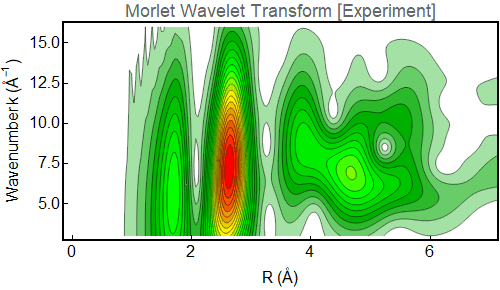

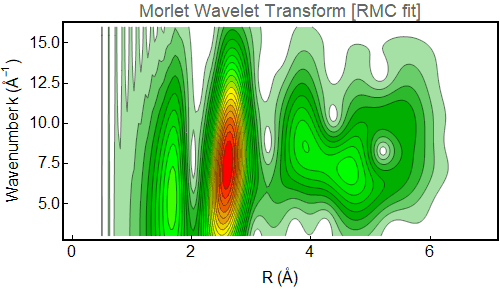

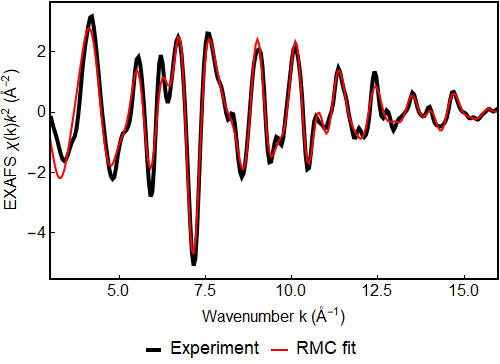

Comparison of experimental data with RMC fit results

Residual = 0.186 (R-factor = 0.034 )

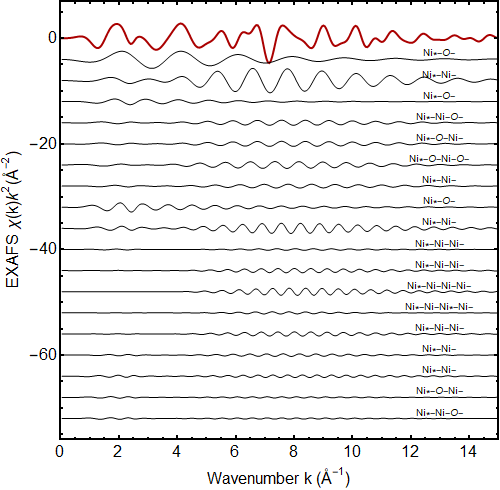

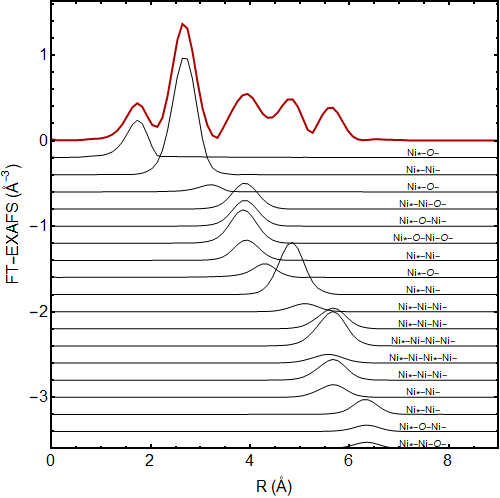

Contributions of the most important paths

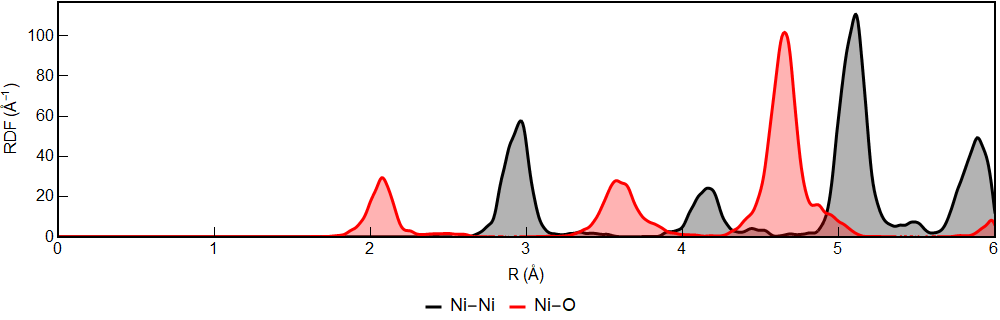

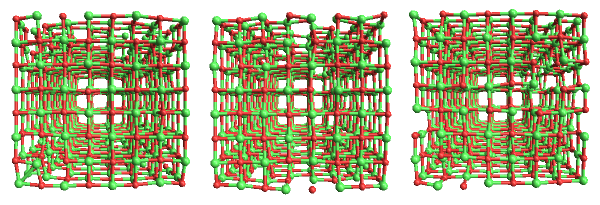

Structure

""
Coord.shell Coord.number Mean R (Å) MSRD (Å-2)
Ni-O 6. 2.091 0.0192
Ni-Ni 12. 2.952 0.0151
Ni-O 8. 3.614 0.0196
Ni-Ni 6. 4.172 0.0178
Ni-O 24. 4.664 0.0179
Ni-Ni 24. 5.108 0.0156
Ni-Ni 12. 5.898 0.0165
