Ni foil, Ni K-edge

Cite as: Timoshenko et al, Phys. Rev. Lett. 120 (2018) 225502
Download all input files
Download all output files

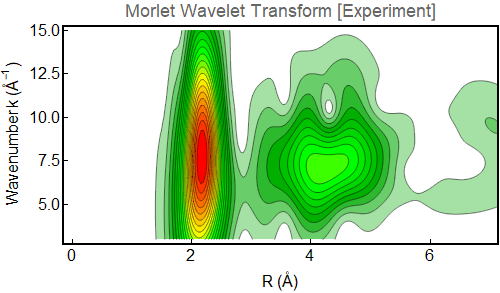

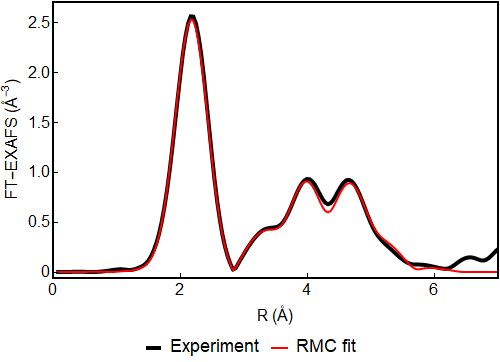

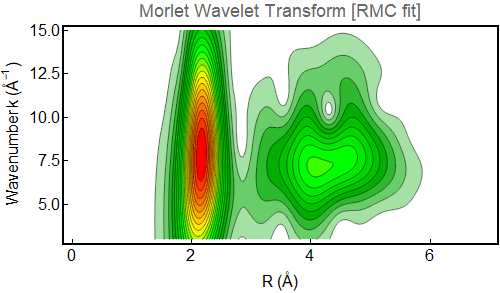

Comparison of experimental data with RMC fit results

Residual = 0.094 (R-factor = 0.009 )

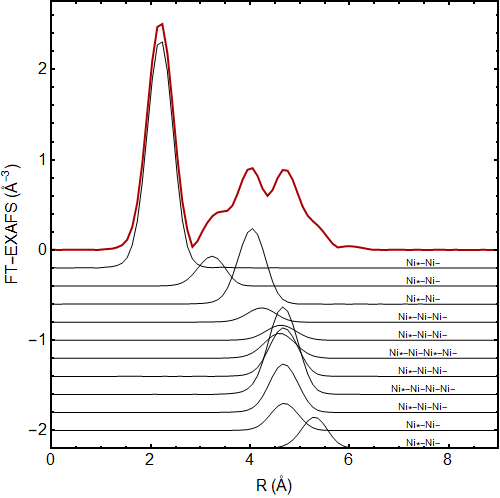

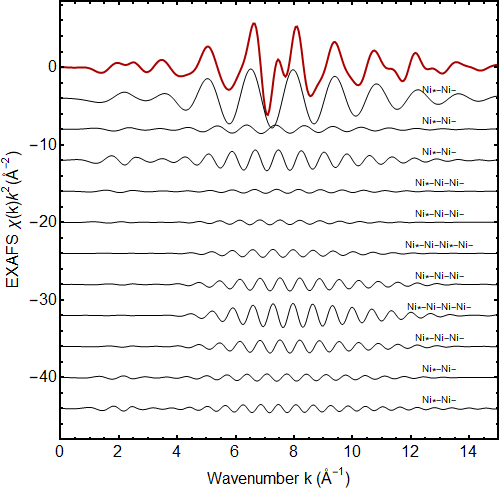

Contributions of the most important paths

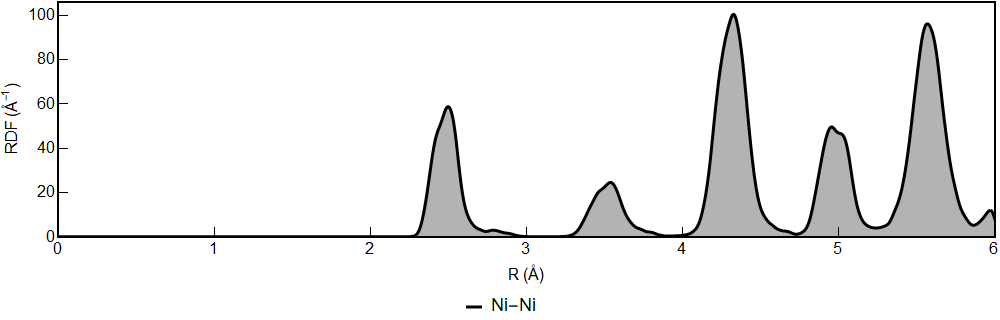

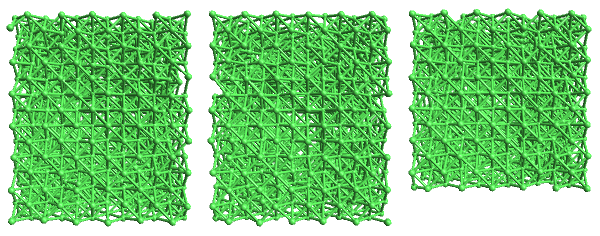

Structure

Coord.shellCoord. numberMean R (Å)MSRD (Å-2)
Ni-Ni 12. 2.495 0.0095
Ni-Ni 6. 3.527 0.0108
Ni-Ni 24. 4.318 0.0099
Ni-Ni 12. 4.986 0.0094
Ni-Ni 24. 5.574 0.0109
