Fe foil, Fe K-edge

Cite as: Timoshenko et al, Phys. Rev. Lett. 120 (2018) 225502
Download all input files
Download all output files

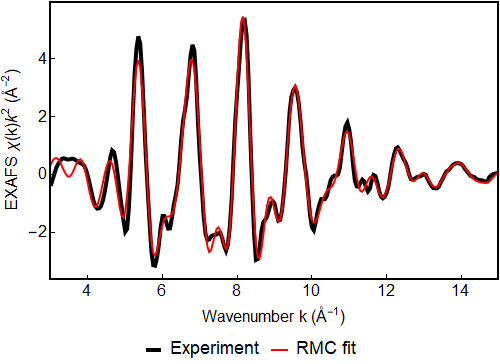

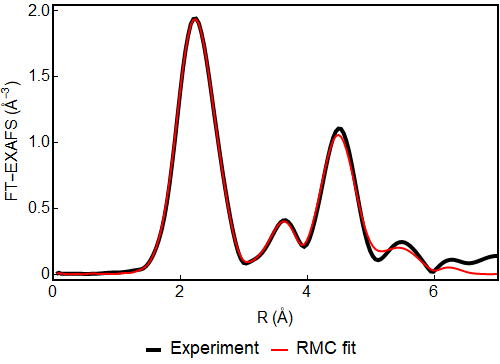

Comparison of experimental data with RMC fit results

Residual = 0.133 (R-factor = 0.018 )

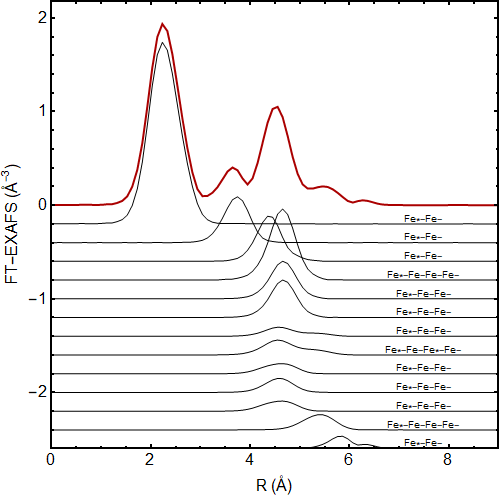

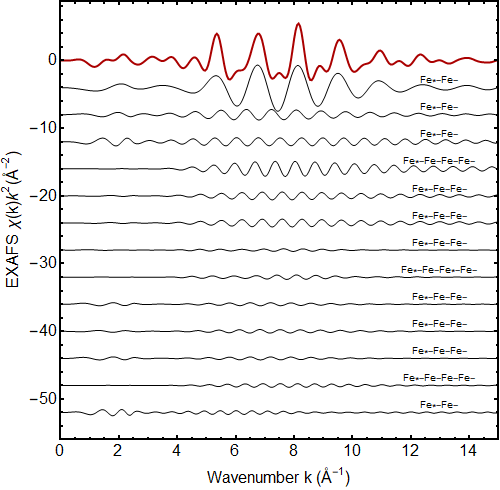

Contributions of the most important paths

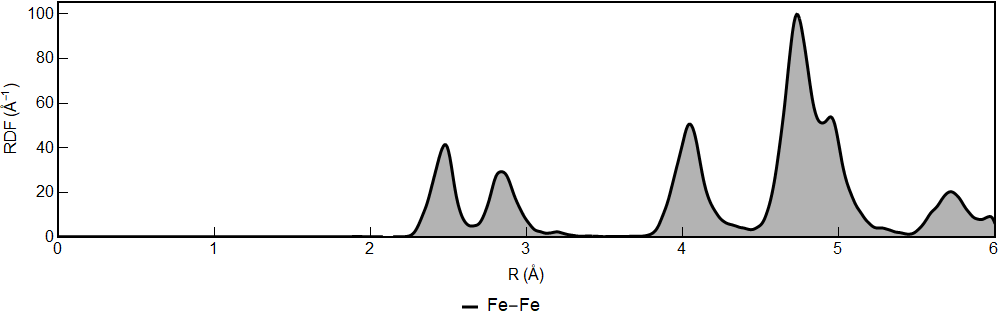

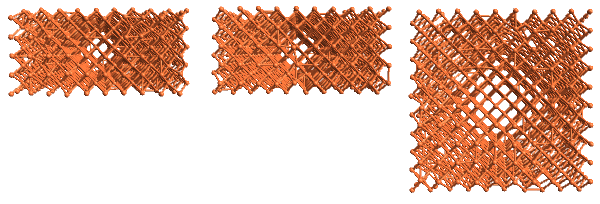

Structure

Coord.shellCoord. numberMean R (Å)MSRD (Å-2)
Fe-Fe 8. 2.493 0.0154
Fe-Fe 6. 2.877 0.0143
Fe-Fe 12. 4.066 0.0165
Fe-Fe 24. 4.766 0.0172
Fe-Fe 8. 4.978 0.0172
Fe-Fe 6. 5.747 0.0188
