Cu7Zn3 brass, Cu K-edge
Cite as: Timoshenko et al, Chem. Sci., 11 (2020) 3727

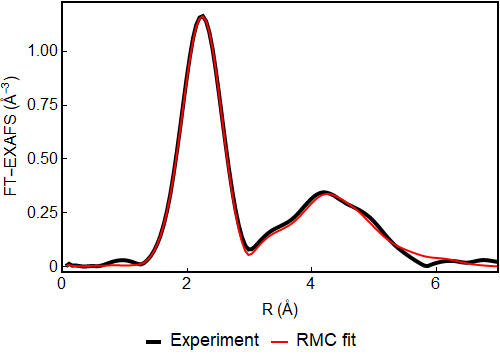

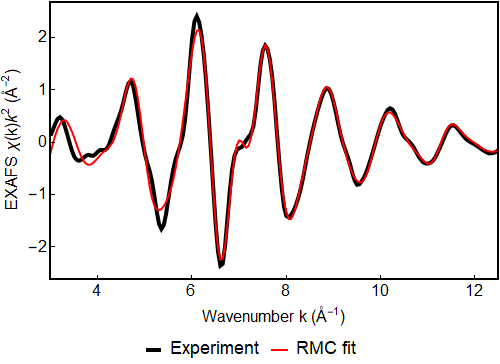

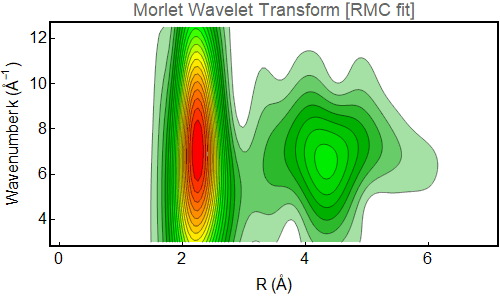

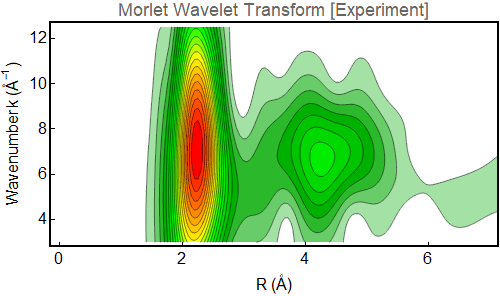

Comparison of experimental data with RMC fit results
Residual = 0.104 (R-factor = 0.011 )

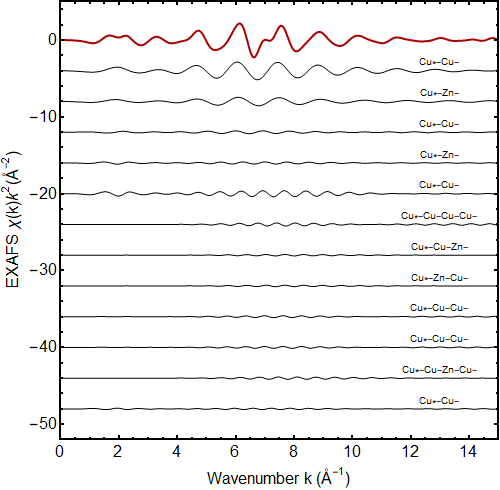

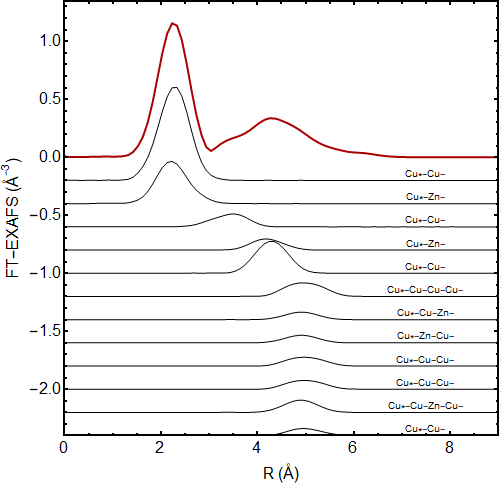

Contributions of the most important paths

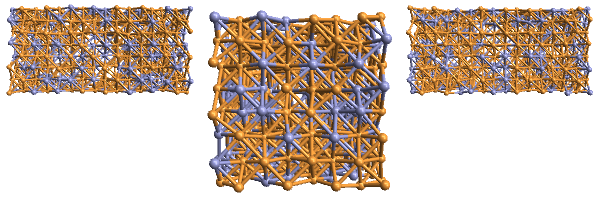

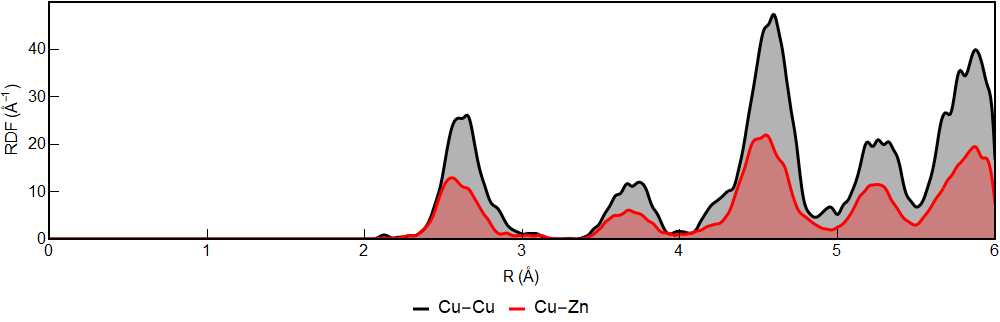

Structure
"| Coord.shell | Coord.number | Mean R (Å) | MSRD (Å-2) |
"
| Cu-Zn | 4.08 | 2.61 | 0.0233 |
| Cu-Cu | 7.92 | 2.635 | 0.0204 |
| Cu-Cu | 3.93 | 3.705 | 0.0185 |
| Cu-Zn | 2.07 | 3.712 | 0.0238 |
| Cu-Zn | 8.06 | 4.531 | 0.0246 |
| Cu-Cu | 15.94 | 4.543 | 0.0233 |
| Cu-Cu | 8.09 | 5.236 | 0.0253 |
| Cu-Zn | 3.91 | 5.239 | 0.0223 |
| Cu-Cu | 16.19 | 5.852 | 0.0241 |
| Cu-Zn | 7.81 | 5.857 | 0.025 |
