Cu(OH)2, Cu K-edge
Cite as: Timoshenko et al, Chem. Sci., 11 (2020) 3727

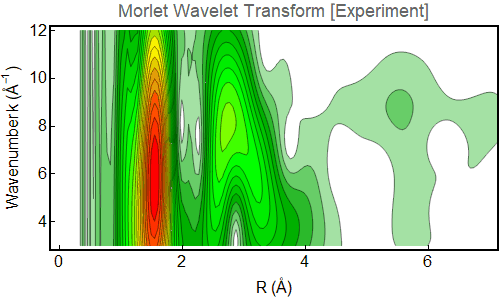

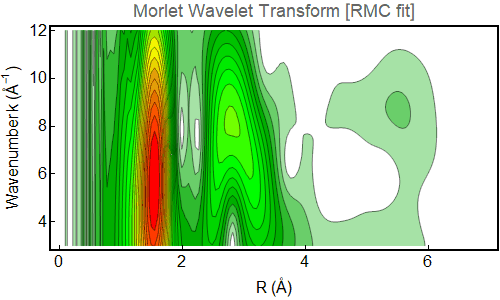

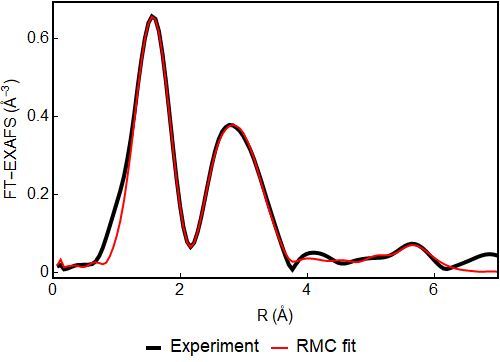

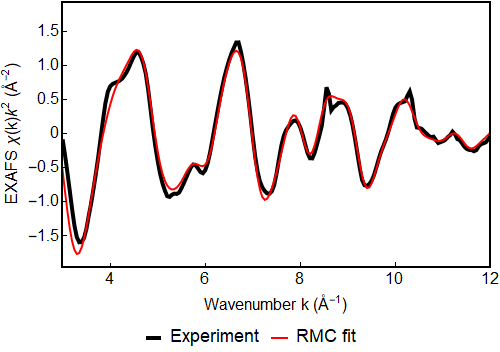

Comparison of experimental data with RMC fit results
Residual = 0.125 (R-factor = 0.016 )

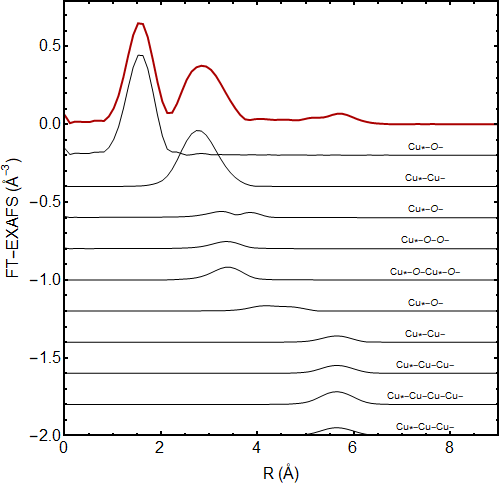

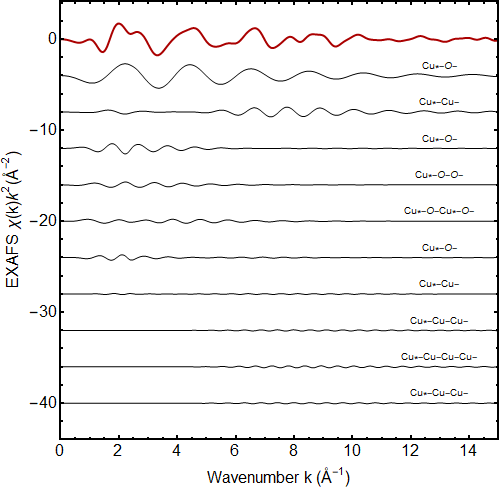

Contributions of the most important paths

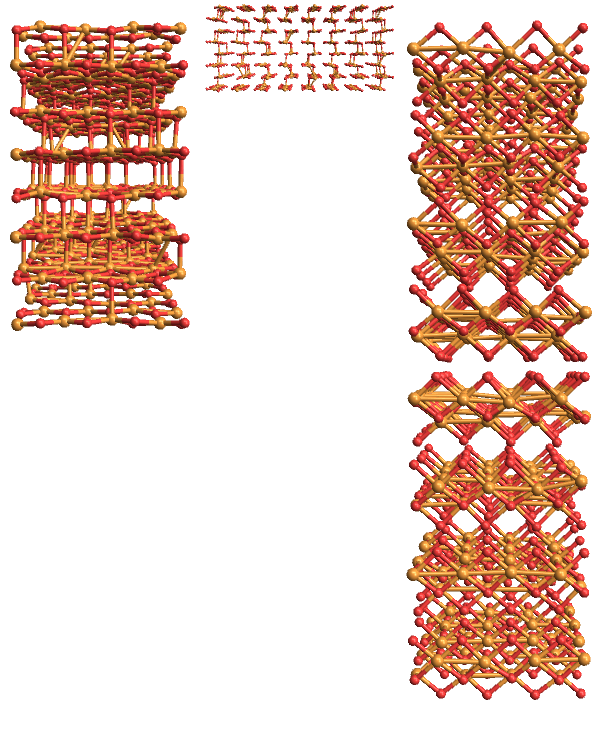

Structure
"| Coord.shell | Coord.number | Mean R (Å) | MSRD (Å-2) |
"
| Cu-O | 4. | 1.944 | 0.0148 |
| Cu-O | 1. | 2.421 | 0.0216 |
| Cu-O | 1. | 2.858 | 0.0175 |
| Cu-Cu | 2. | 2.954 | 0.0115 |
| Cu-Cu | 4. | 3.323 | 0.0281 |
| Cu-O | 4. | 3.791 | 0.0137 |
| Cu-O | 5. | 3.986 | 0.0163 |
| Cu-O | 4. | 4.081 | 0.0166 |
| Cu-O | 4. | 4.599 | 0.0105 |
| Cu-Cu | 2. | 4.714 | 0.0258 |
| Cu-O | 4. | 4.783 | 0.0143 |
| Cu-O | 4. | 5.013 | 0.0126 |
| Cu-Cu | 6. | 5.307 | 0.022 |
| Cu-O | 2. | 5.382 | 0.0138 |
| Cu-Cu | 8. | 5.53 | 0.02 |
| Cu-O | 4. | 5.615 | 0.0162 |
| Cu-O | 8. | 5.754 | 0.0172 |
| Cu-O | 4. | 5.812 | 0.0151 |
| Cu-Cu | 2. | 5.898 | 0.0107 |
