CuO, Cu K-edge, T = 50 K
Cite as: Timoshenko et al, Chem. Sci., 11 (2020) 3727

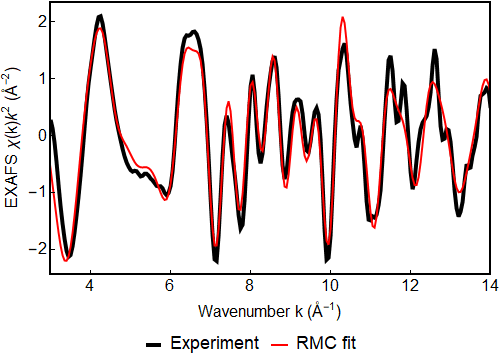

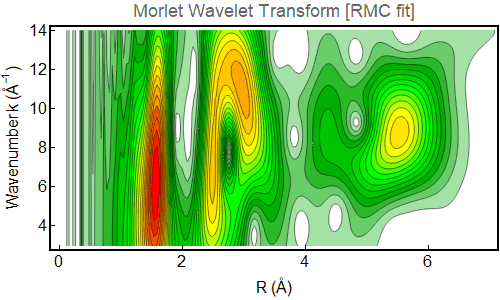

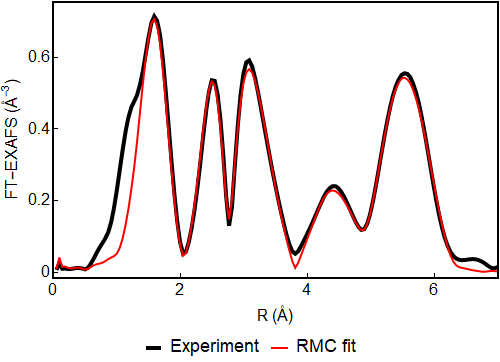

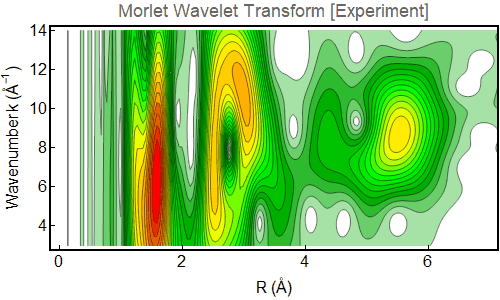

Comparison of experimental data with RMC fit results
Residual = 0.195 (R-factor = 0.038 )

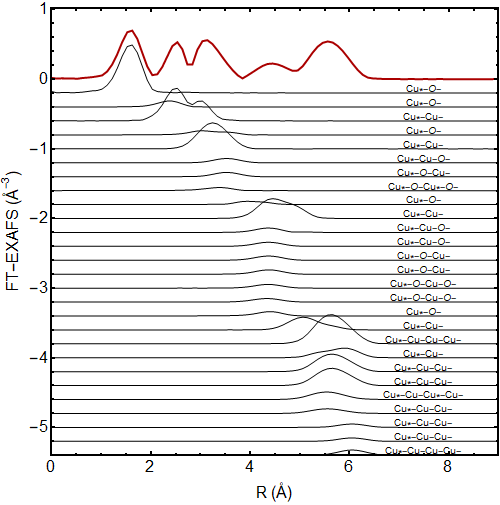

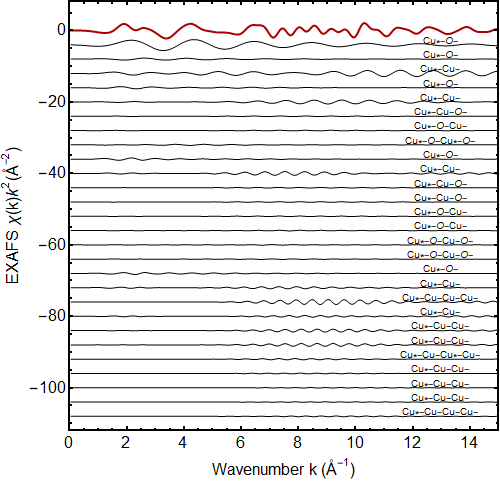

Contributions of the most important paths

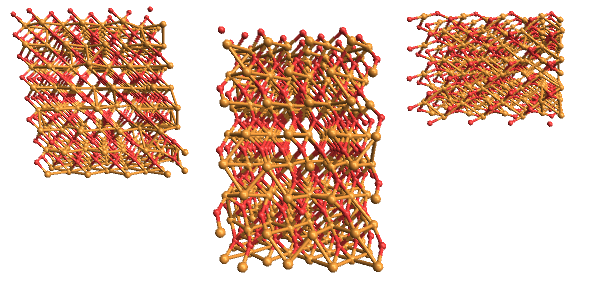

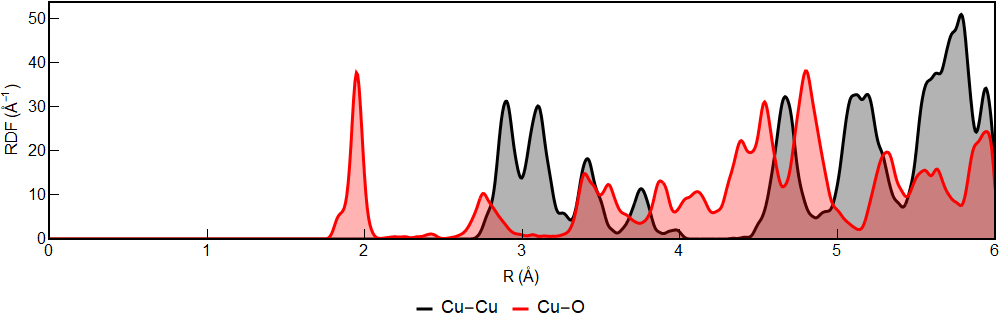

Structure
"| Coord.shell | Coord.number | Mean R (Å) | MSRD (Å-2) |
"
| Cu-O | 4. | 1.959 | 0.0101 |
| Cu-O | 2. | 2.794 | 0.0116 |
| Cu-Cu | 4. | 2.904 | 0.0047 |
| Cu-Cu | 6. | 3.115 | 0.0185 |
| Cu-O | 2. | 3.404 | 0.0048 |
| Cu-Cu | 2. | 3.425 | 0.0028 |
| Cu-O | 2. | 3.585 | 0.0102 |
| Cu-Cu | 2. | 3.751 | 0.0121 |
| Cu-O | 2. | 3.877 | 0.0108 |
| Cu-O | 2. | 4.095 | 0.0092 |
| Cu-O | 4. | 4.389 | 0.0126 |
| Cu-O | 4. | 4.546 | 0.0086 |
| Cu-Cu | 6. | 4.675 | 0.0078 |
| Cu-O | 6. | 4.793 | 0.0097 |
| Cu-O | 4. | 4.857 | 0.0101 |
| Cu-Cu | 6. | 5.095 | 0.0112 |
| Cu-Cu | 4. | 5.242 | 0.0078 |
| Cu-O | 4. | 5.316 | 0.0096 |
| Cu-O | 2. | 5.546 | 0.0075 |
| Cu-Cu | 8. | 5.595 | 0.0123 |
| Cu-O | 2. | 5.655 | 0.0089 |
| Cu-Cu | 12. | 5.729 | 0.0102 |
| Cu-O | 4. | 5.914 | 0.0086 |
| Cu-Cu | 4. | 5.953 | 0.0065 |
