CuO, Cu K-edge, T = 150 K
Cite as: Timoshenko et al, Chem. Sci., 11 (2020) 3727

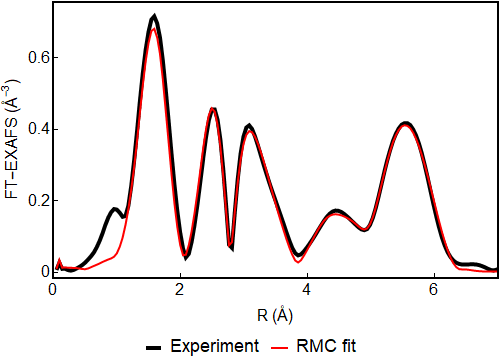

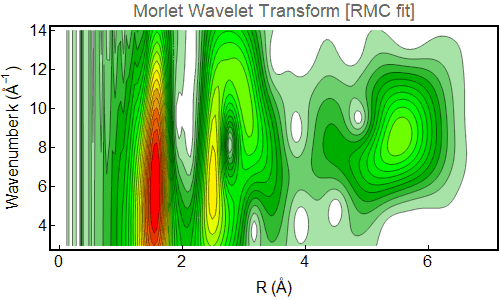

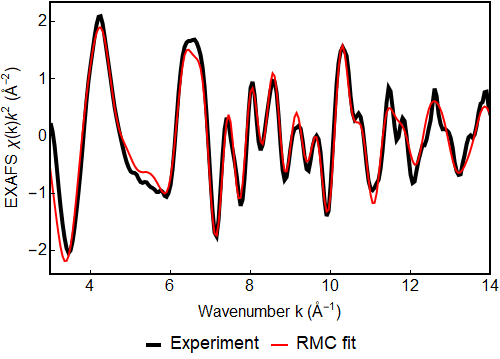

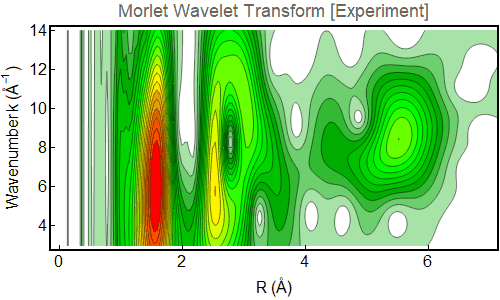

Comparison of experimental data with RMC fit results
Residual = 0.156 (R-factor = 0.024 )

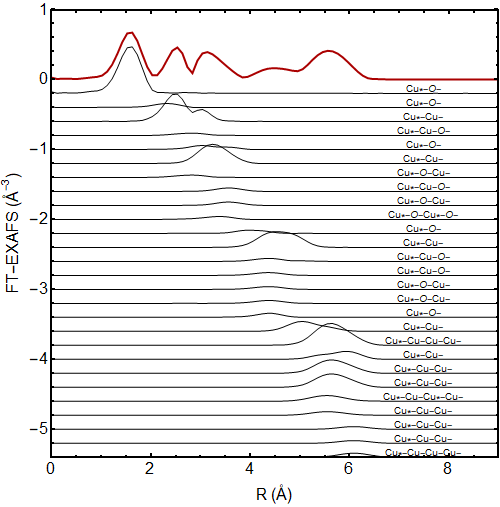

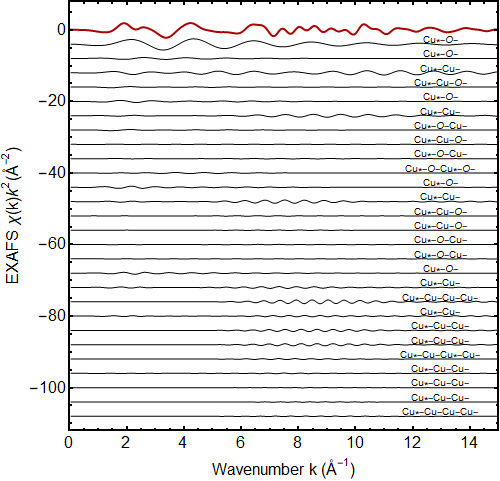

Contributions of the most important paths

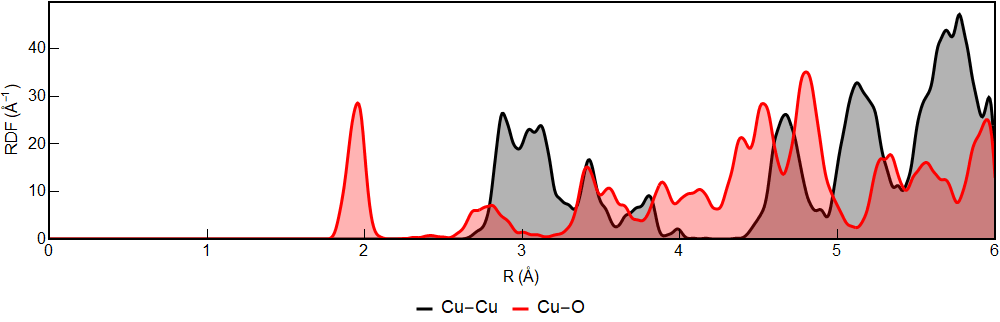

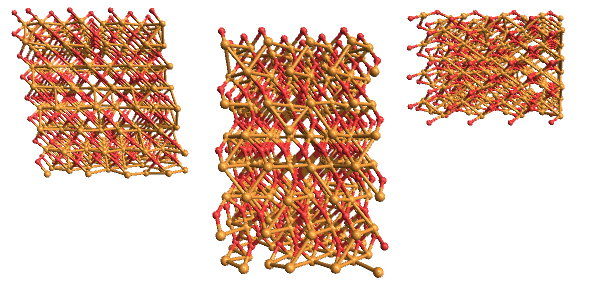

Structure
"| Coord.shell | Coord.number | Mean R (Å) | MSRD (Å-2) |
"
| Cu-O | 4. | 1.958 | 0.0092 |
| Cu-O | 2. | 2.8 | 0.0139 |
| Cu-Cu | 4. | 2.904 | 0.0062 |
| Cu-Cu | 6. | 3.116 | 0.0195 |
| Cu-O | 2. | 3.398 | 0.0049 |
| Cu-Cu | 2. | 3.426 | 0.0056 |
| Cu-O | 2. | 3.586 | 0.0094 |
| Cu-Cu | 2. | 3.751 | 0.0144 |
| Cu-O | 2. | 3.878 | 0.0113 |
| Cu-O | 2. | 4.093 | 0.0085 |
| Cu-O | 4. | 4.391 | 0.0148 |
| Cu-O | 4. | 4.546 | 0.0082 |
| Cu-Cu | 6. | 4.675 | 0.0094 |
| Cu-O | 6. | 4.791 | 0.0107 |
| Cu-O | 4. | 4.853 | 0.0102 |
| Cu-Cu | 6. | 5.095 | 0.0131 |
| Cu-Cu | 4. | 5.242 | 0.0084 |
| Cu-O | 4. | 5.32 | 0.0093 |
| Cu-O | 2. | 5.551 | 0.0071 |
| Cu-Cu | 8. | 5.595 | 0.0142 |
| Cu-O | 2. | 5.655 | 0.0112 |
| Cu-Cu | 12. | 5.73 | 0.0129 |
| Cu-O | 4. | 5.917 | 0.009 |
| Cu-Cu | 4. | 5.954 | 0.0081 |
