Cu3N, Cu K-edge

Cite as: Timoshenko et al, Acta Mater. 129 (2017) 61
Download all input files
Download all output files

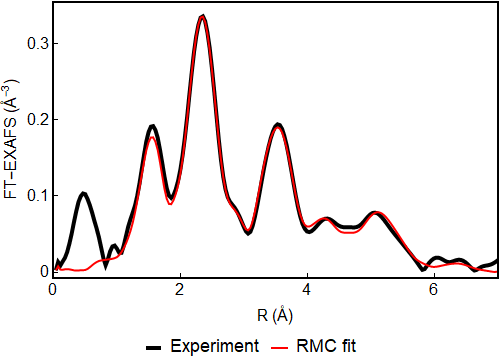

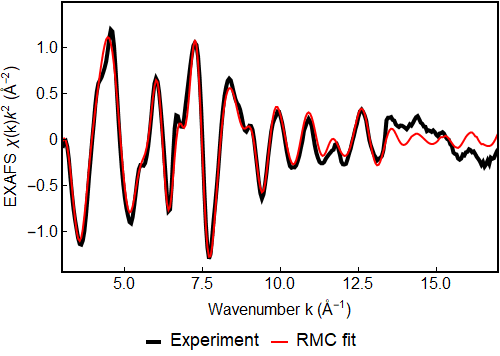

Comparison of experimental data with RMC fit results

Residual = 0.106 (R-factor = 0.011 )

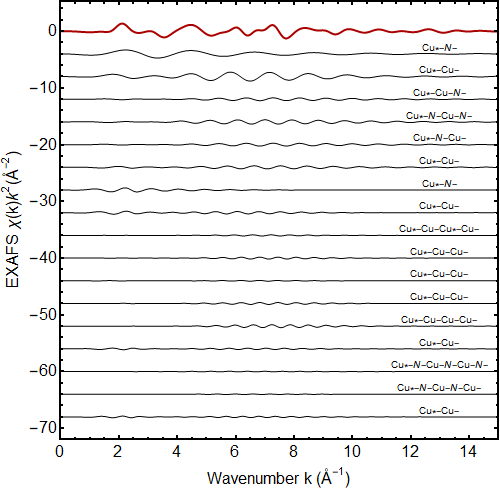

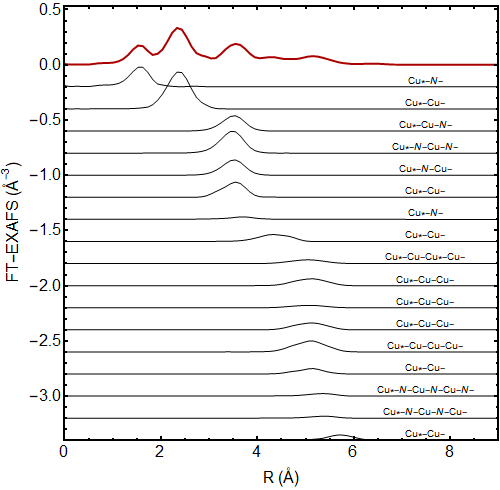

Contributions of the most important paths

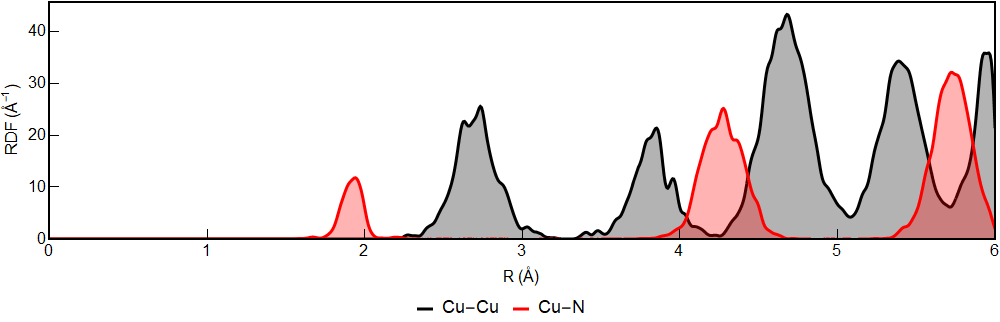

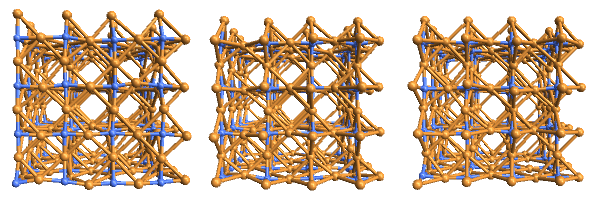

Structure

Coord.shellCoord. numberMean R (Å)MSRD (Å-2)
Cu-N 2. 1.919 0.0058
Cu-Cu 8. 2.707 0.0204
Cu-Cu 6. 3.823 0.0205
Cu-N 8. 4.271 0.0171
Cu-Cu 16. 4.679 0.0237
Cu-Cu 12. 5.402 0.0214
Cu-N 10. 5.728 0.0154
