Cu2O, Cu K-edge

Cite as: Timoshenko et al, Chem. Sci., 11 (2020) 3727
Download all input files
Download all output files

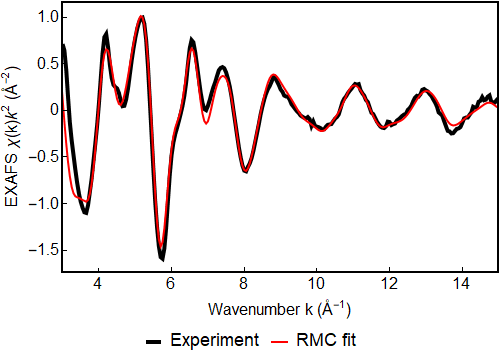

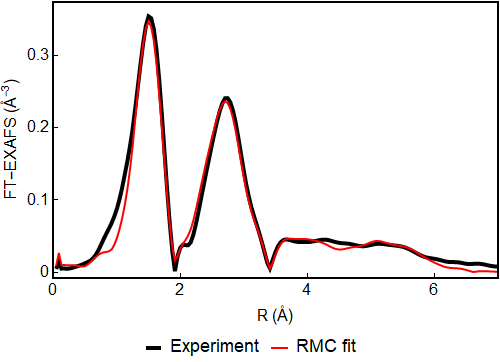

Comparison of experimental data with RMC fit results

Residual = 0.192 (R-factor = 0.037 )

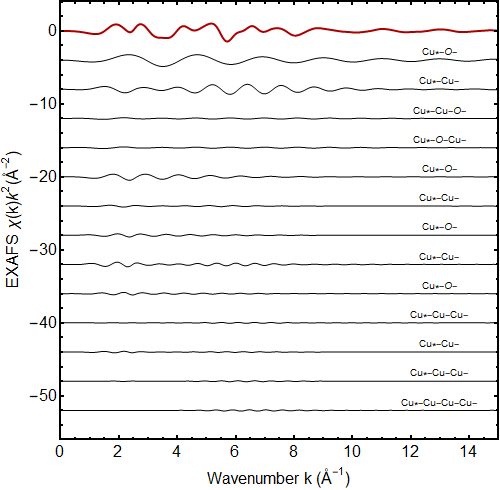

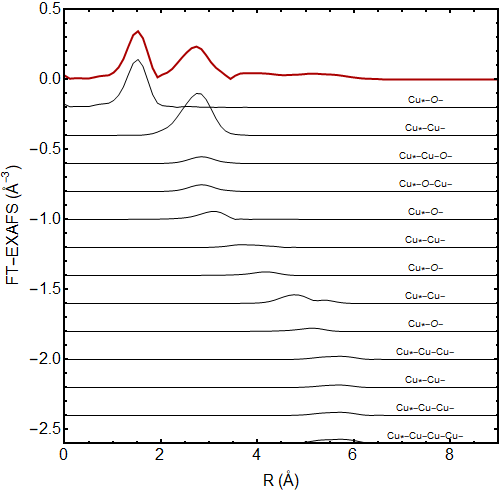

Contributions of the most important paths

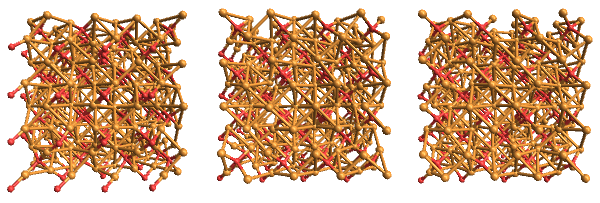

Structure

""
Coord.shell Coord.number Mean R (Å) MSRD (Å-2)
Cu-O 2. 1.856 0.0125
Cu-Cu 12. 3.025 0.0276
Cu-O 6. 3.543 0.0163
Cu-Cu 6. 4.274 0.0248
Cu-O 6. 4.655 0.0151
Cu-Cu 24. 5.232 0.0217
Cu-O 8. 5.548 0.013
