Cu foil, Cu K-edge, T = 300 K

Cite as: Timoshenko et al, Acta Mater. 129 (2017) 61
Download all input files
Download all output files

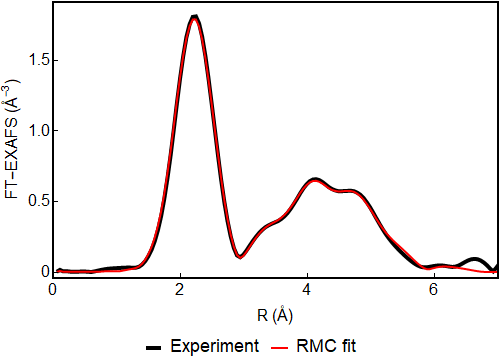

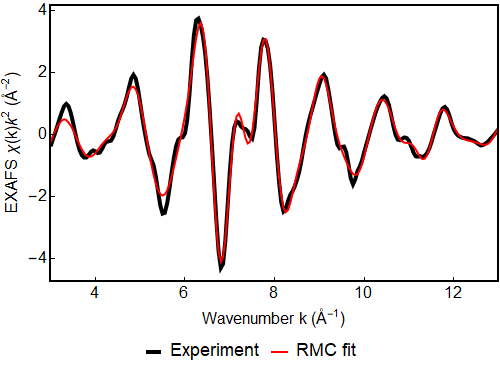

Comparison of experimental data with RMC fit results

Residual = 0.066 (R-factor = 0.004 )

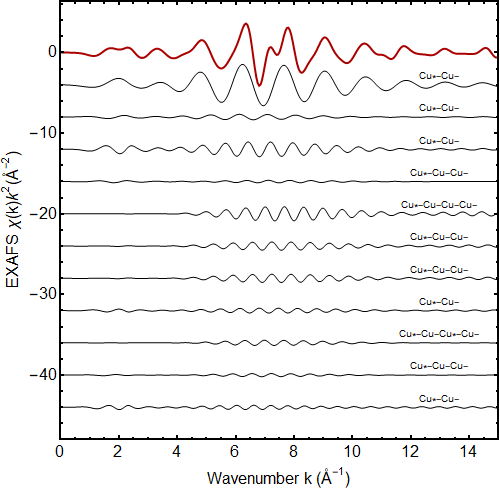

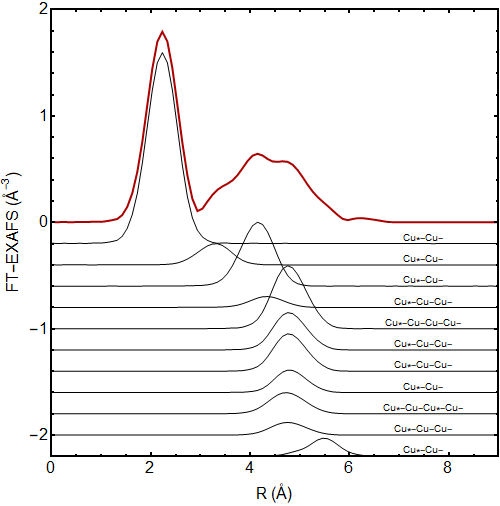

Contributions of the most important paths

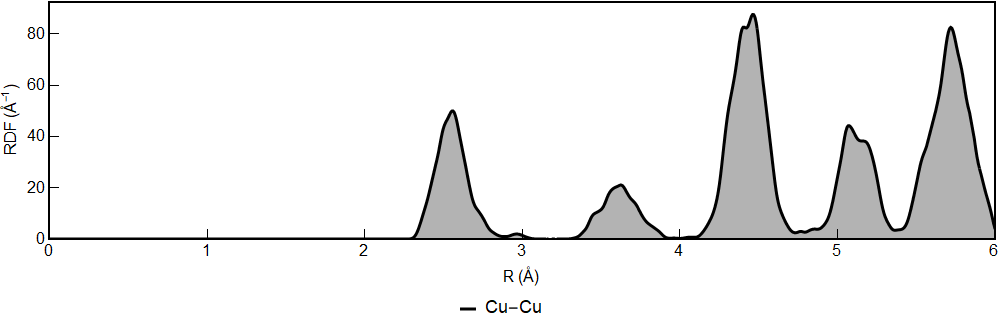

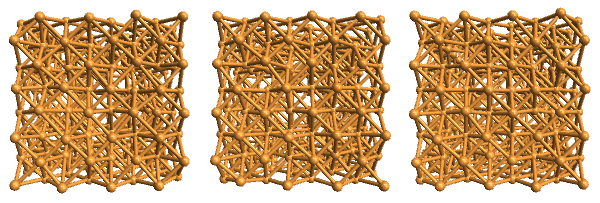

Structure

""
Coord.shell Coord.number Mean R (Å) MSRD (Å-2)
Cu-Cu 12. 2.561 0.0123
Cu-Cu 6. 3.618 0.0131
Cu-Cu 24. 4.43 0.0116
Cu-Cu 12. 5.115 0.0119
Cu-Cu 24. 5.718 0.0147
