Co foil, Co K-edge

Cite as: Timoshenko et al, Phys. Rev. Lett. 120 (2018) 225502
Download all input files
Download all output files

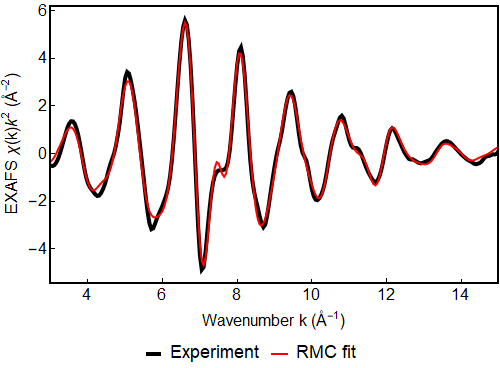

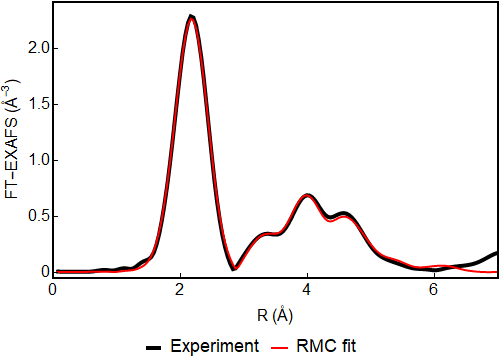

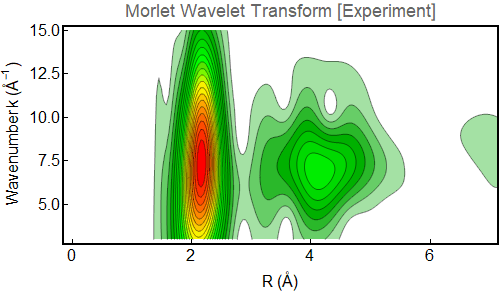

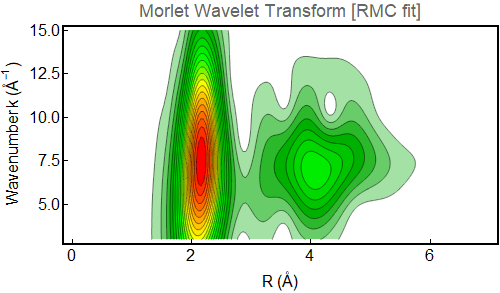

Comparison of experimental data with RMC fit results

Residual = 0.072 (R-factor = 0.005 )

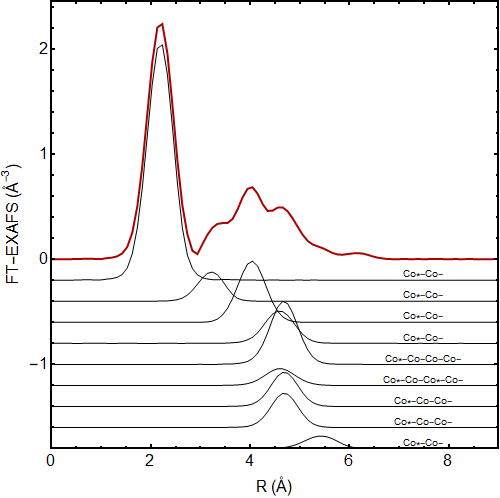

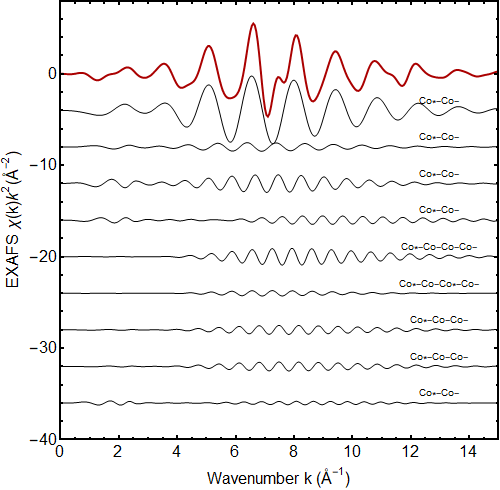

Contributions of the most important paths

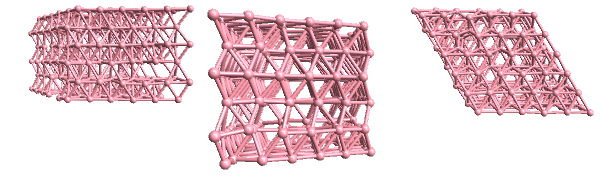

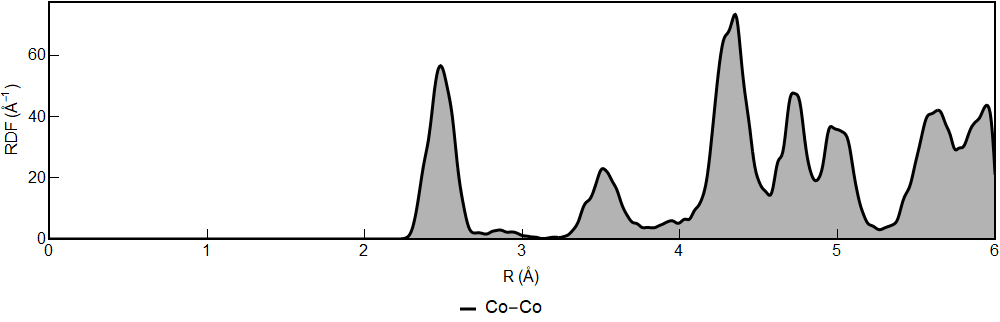

Structure

Coord.shellCoord. numberMean R (Å)MSRD (Å-2)
Co-Co 12. 2.507 0.0146
Co-Co 6. 3.543 0.0169
Co-Co 2. 4.072 0.028
Co-Co 18. 4.342 0.014
Co-Co 12. 4.783 0.025
Co-Co 6. 5.018 0.0106
Co-Co 12. 5.605 0.0148
Co-Co 12. 5.954 0.0203
