PdAu nanoparticle, Au L3-edge

Cite as: Timoshenko et al, Nano Lett. 19 (2019) 520
Download all input files
Download all output files

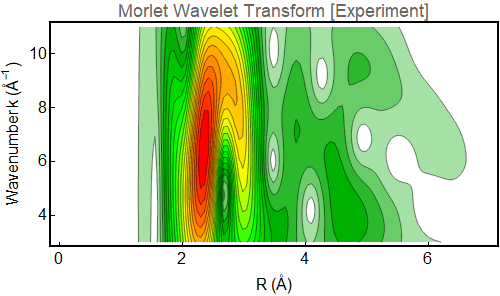

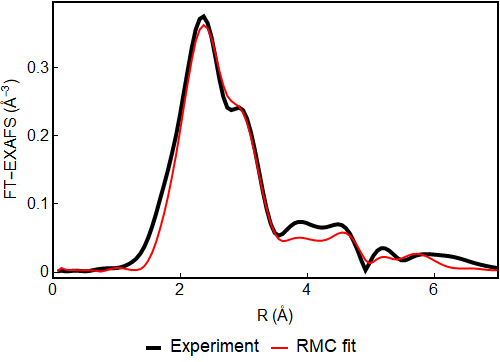

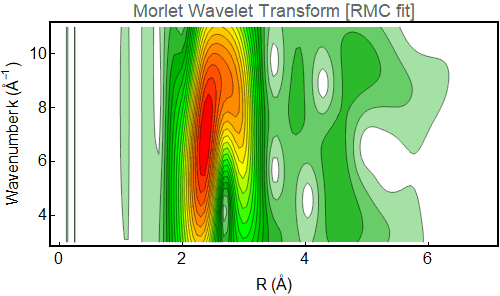

Comparison of experimental data with RMC fit results

Residual = 0.174 (R-factor = 0.03 )

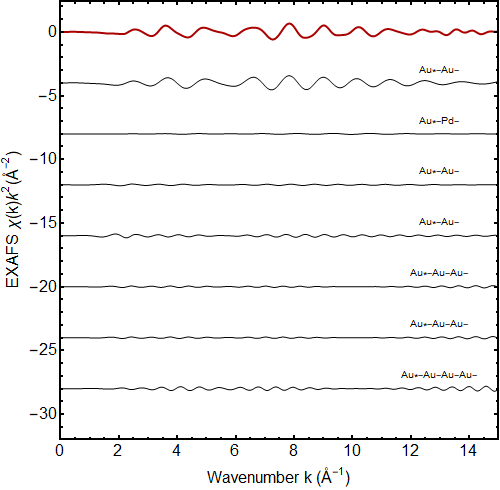

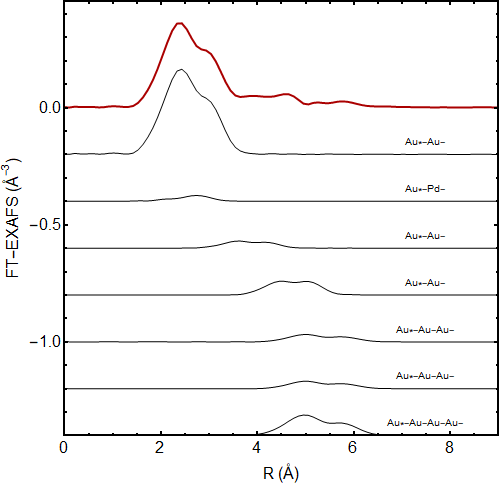

Contributions of the most important paths

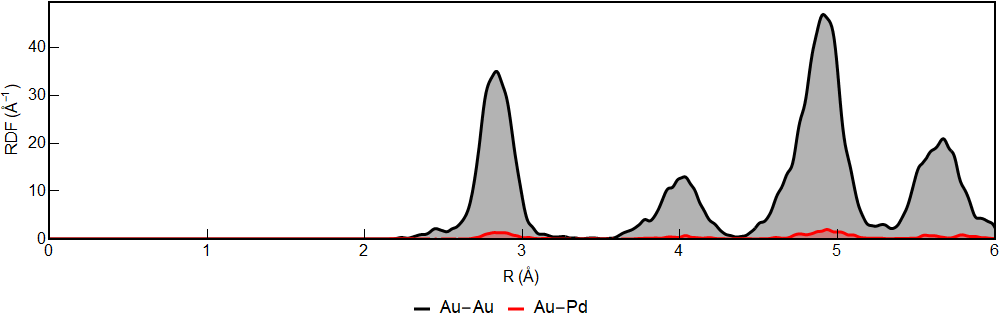

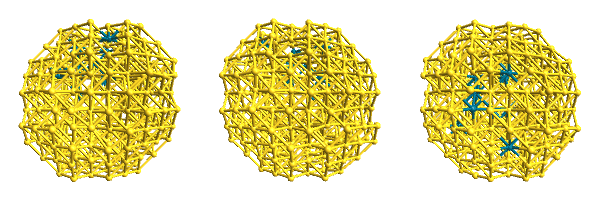

Structure

Coord.shellCoord. numberMean R (Å)MSRD (Å-2)
Au-Au 9.36 2.823 0.0173
Au-Pd 0.33 2.857 0.0228
Au-Au 4.25 3.988 0.0217
Au-Pd 0.15 4.013 0.0179
Au-Au 15.18 4.881 0.0209
Au-Pd 0.57 4.909 0.0188
Au-Au 7.17 5.634 0.0203
Au-Pd 0.26 5.662 0.0309
