Au foil, Au L3-edge

Cite as: Timoshenko and Frenkel, Catal. Today 280 (2017) 274
Download all input files
Download all output files

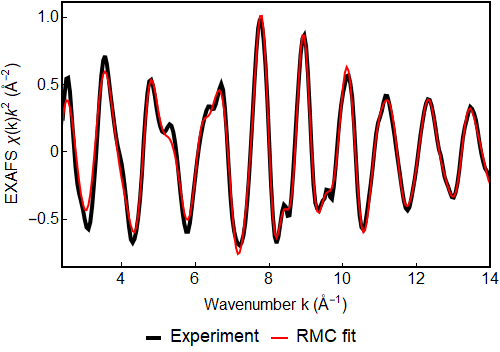

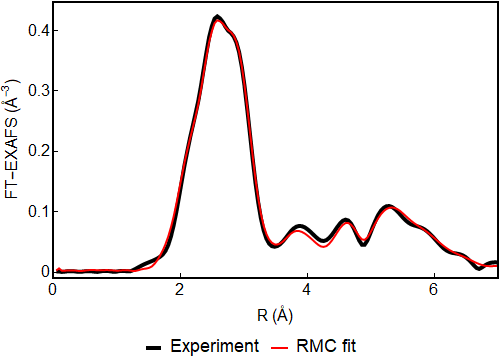

Comparison of experimental data with RMC fit results

Residual = 0.099 (R-factor = 0.01 )

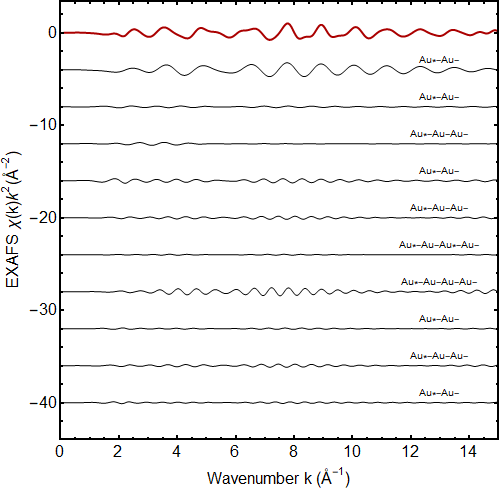

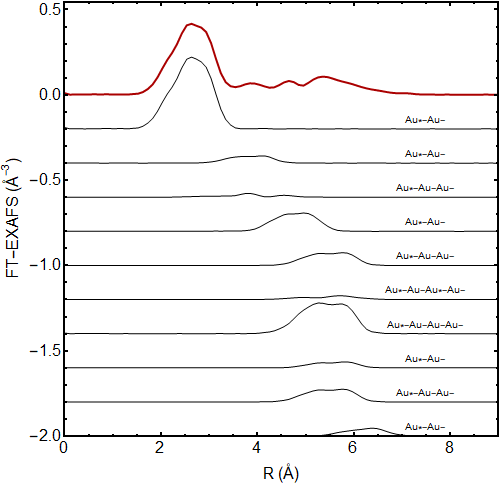

Contributions of the most important paths

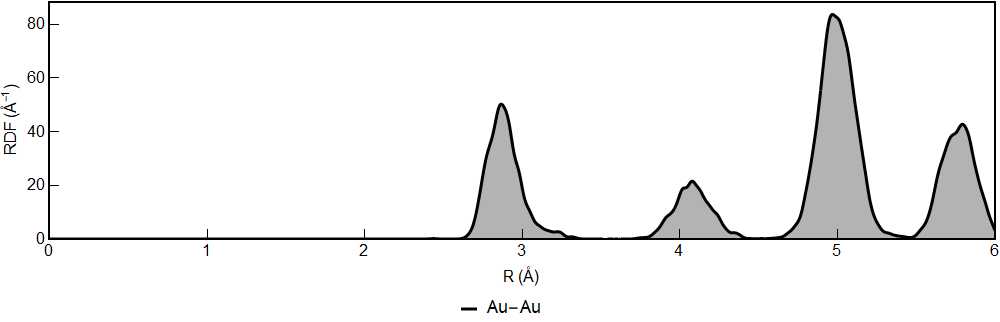

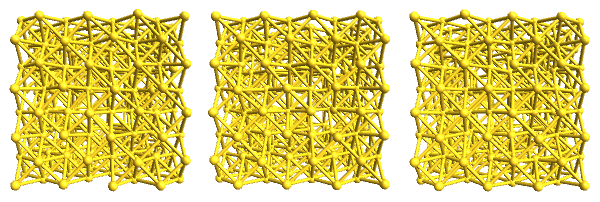

Structure

Coord.shellCoord. numberMean R (Å)MSRD (Å-2)
Au-Au 12. 2.888 0.0122
Au-Au 6. 4.082 0.0137
Au-Au 24. 4.998 0.0129
Au-Au 12. 5.771 0.0121
